DALPROP 5045 V2 TRIBLADE



Finally the V2 Triblade propellers bring the performance, the speed and the efficiency to the 250 sized mini racing drone market. These tri-blade propellers will change your flying forever. Small but powerful 5045 V2 tri-blade propellers will provide smooth flight while providing pure thrust punch outs with saving lots of battery time compared to the BN version.
 PC + glass fiber material is made of a high quality, flexible and durable plastic that can easily survive crashes and tree clips.
DAL Props are much stronger and durable than the completion and will provide much longer lifetime.

PACKAGE CONTENT:

  • 2 x 5x4.5 CW, 2x 5x4.5 CCW V2 tri-blade propellers
Available now on stock ORANGE & GREEN color

'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682
#Jual Dalprop murah
#Jual Dalprop 5045
#Jual Dalprop triblade
#Jual Dalprop triblade v2

On 07.23 by ayuhobbies   No comments

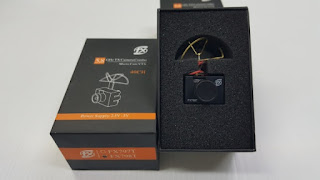

FX798T MICRO FPV CAMERA & 5.8GHZ 40CH 25MW VTX


#jual micro camera
#jual micro vtx camera
#jual micro vtx camera murah
#jual micro camera tinny whoop
#jual vtx tiny whoop
#jual micro camera bandung

DETAILS

The FX798T Micro FPV Camera & 5.8GHz 40CH 25mW VTX is extremely small and could be installed on almost anything. The unit is ultra-lightweight, so it is easy to place on any aircraft without affecting the COG. Most multi-rotors wouldn’t even notice it was there. This Camera / VTX combo is a popular choice for adding FPV to the Blade Inductrix micro quadcopter.
It’s easy to install and operate with one push button to change channels and bands. Just plug into a little 1S Lipolybattery or onto your 5V rail and you are ready to go.
It has excellent video and low latency for such a small package. The combo also includes a splitter and a circular polarized 5.8G tuned antenna for the best video signal.

FEATURES

  • Micro sized and lightweight (4.5g)
  • 40CH VTX
  • Easy install, plug and play
  • Push button control instead of switch to change channels
  • Powered by 1S 3.5V LiPoly battery

SPECS

  • Transmitter power: 25mW
  • Input power: 2.5~5V
  • Camera resolution: 600TVL
  • Min illumination: 1 lux
  • Field of view: 140deg viewing angle
  • Antenna dimensions: 20 x 25mm diameter
  • Antenna: 3 lobe right hand circular polarized
  • Video output: NTSC
  • Frequency: 5.8GHz 5 bands 40 channels
  • Raceband: 5658-5917
  • Size: 21x19x17mm (excluding antenna)
  • Weight: 4.5g

Channels:

Band F: 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Band E: 5705, 5685, 5665, 5645, 5885, 5905, 5925, 5945
Band A: 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
Band R: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917
Band B: 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866

'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682


On 07.20 by ayuhobbies   No comments
FOXEER 5.8G Circular-polarized omni  antenna, can be used both at VTx antenna and VRx antenna.
SWR: <1.5, Tuned for 5600~5950Mhz
Polarization: RHCP
Specification:
Frequency range: 5600-5950 MHz
Gain : 3DBi
SWR: <1.5
3dB horizontal lobe width: 360°
3dB verticle lobe width: 120°
Polarization: omni
Max power: 50W
Resistance: 50O
Lightning protection: DC Grounded
Polarization: RHCP
Connector: SMA
Size: 105×35mm (feeder line 75mm)
Weight: 12g
Material: Cu
Package Included:
1 x Antenna RHCP SMA + ORIGINAL BOX

'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682

#jual antenna jamur RHCP
#jual antenna foxeer RHCP
#jual antenna foxeer RHCP SMA


On 07.18 by ayuhobbies   No comments

FOXEER TM25 5.8GHZ 25/200/600MW VARIABLE VTX RACE BAND


Foxeer TM25 SWITCHER 5.8G 25/200/600mW adjustable VTx, supports 40 channel including race band, VTx is 9.5g without antenna, good capacity of anti-interference, can change frequency/channel/power only by the button, very easy operation.

1. Long press the key for 2 seconds to enterchannel setting mode, short press the key to switch 1 to 8
2. Long press the key for 2 seconds to enterchannel group setting mode, short press the key to switch channel group from 1to 5.
3. Long press the key for 2 seconds to enterpower setting mode, short press key to switch 1 to 3, "1" stands for25mW, "2" stands for 200mW, "3" stands for 600mW
4. Long press the key for 2 seconds to quitsetting mode, LED display window will show present group and channelalternately, power do not show.
'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682

#Jual Foxeer Vtx murah
#Jual Foxeer Vtx bandung
#Jual Foxeer Vtx switcher
#Jual Foxeer Vtx 200mw
#Jual Foxeer Vtx 25mw
#Jual Foxeer Vtx 600mw



On 07.16 by ayuhobbies   No comments

#jual foxeer hs1190 v2

#JUAL FOXEER HS1190 V2 murah

#JUAL FOXEER HS1190 V2 bandung

FOXEER 2.8MM ARROW HS1190 600TVL FPV CAMERA CCD OSD NTSC/PAL IR BLOCK MINI FPV CAMERA W/ BRACKET



The NEW Foxeer Arrow (HS1190) is the advanced version of the Foxeer XAT600M (HS1177. It features an excellent wide dyanmic range function and supports DC5-22v wide voltage range. It also has an inbuilt OSD and MIC.

Features:

600TVL/700TVL
1/3 Sony Super HAD II CCD
Built in FPV OSD (Votlage, Flight Time, Name)
Built in Audio
Wide Dynamic Range (D-WDR)
Wide Voltage Range DC5V-22V
Various Installation Options
Package Included:
1 x HS1190 Camera
1 x Metal bracket
1 x OSD control board
1 x Plastic rings set
1 x 5pin servo cable
2 x Camera cases


'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682


On 07.14 by ayuhobbies   1 comment

QAV-X 214 214MM FPV RACING FRAME KIT WITH 4MM ARM + MATEK PDB


Description:

Item Name: QAV-X Carbon Fiber Frame Kit
Material: Full 3K Carbon Fiber
Wheelbase: 214mm
Main Plate : 4mm
Battery Protector plate : 1.5mm
Frame Weight: about 84.5g
Battery board weight: 6g

Features:
Use 4MM 3K carbon fiberMain Plate light and simply.
The bottom fuselage uses 4MM pure carbon fiber board, fuselage and arms in one make the space bigger and make it stronger.
Only 100g, and stable.
With 5V 12V distribution board , compatible with 3S and 4S battery
With 5 inch flat blade, more efficient than the other propeller.
In high strength test, flying fluently in cornering, is suitable for the competition

Recommanded Spare Parts: Not included
Brushless motor:1806-2206(KV2000-2300)
Brushless ESC:12-30A
Flight Controller: Mini CC3D/Naze32
Propeller:5030,5040,5045
VTX:5.8G 200-600mW 32CH
Antenna: Clover antenna/ 14DB flat antenna/ mushroom antenna

Matek PDB-XT60 distribution board:

The PDB-XT60 has been engineered to provide the highest possible performance and reliability in a 36*50mm & 4 layers PCB. It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronised & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.
It offers a XT60 socket to connect the LiPo pack conveniently.

Description:

General:
-Input voltage range (3S-4S LiPo operation): 9 - 18V DC
-Regulated 5V and 12V outputs
-LED power indicators ( 5V & 12V outputs )
-6 ESC outputs & 1 pair VCC/GND pads

ESC outputs:
-Continuous current: 25A*4 or 15A*6
-Peak current (10 seconds/minute): 30A*4 or 20A*6

BEC 5V output:
-Designed for RC Receivers, Flight controllers, OSD, and Servos.
-DC/DC synchronous buck regulator.
-Voltage: 5.0 +/- 0.1VDC
-Continuous current: 2 Amps (Max.2.5A 10s/minute)
-Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
-Short-circuit tolerant (5 seconds/minute)

BEC 12V output:
-Designed for Video TX or FPV camera with linear regulator.
-The battery should be 4S LiPo (13~18V DC)
- Voltage: 12.0 +/- 0.3VDC
-Continuous current: 500mA (Max.0.8A 5s/minute)
-Short-circuit tolerant (2 seconds/minute)

BEC 12V @ 3S LiPo
-Output voltage= 3S LiPo voltage -1V

Physical:
-Dimensions: 36 x 50 x 4 mm (without XT60)
-Mounting: 30.5 x 30.5mm, Φ3mm
- Weight: 7.5g(w/o XT60), 11g(w/ XT60)

Features:
2oz copper, 4-layers &1.6mm PCB.
Built-in XT60 Socket
Total 6 pairs ESC solder tabs are fit for H or X type frame 5V & 12V Output LED indicators & Short circuit tolerant






Package list:

1 x QAV-X quadcopter frame (unassembled)
1pcs Matek board (as your wish)
1pcs battery belt as the gift (not include the battery in the package)
4pcs Sponge Dumper
2pair 5045V2 propeller




Note : this frame aren`t Lumenier frame, the parts and accessories can not be universal.

'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682

#jual qavx murah
#jual qavx clone
#jual qavx bandung
#jual qavx qav-x
#jual Kit drone race murah
#jual frame drone race


Rabu, 14 September 2016

On 08.26 by ayuhobbies   No comments
Charger 4 in 1 for Phantom 3



jual Charger 4 in 1 for Phantom 3
jual charger 3 in 1 buat phantom 3
jual charger phantom 3 murah
jual charger phantom 3 bandung
jual charger phantom 3 bisa charge banyak
Features:
Compact body design.
High quality and durable in performace.
Simultaneously charge to three batteries and a remote control.
The charging time for 3 battery is about 80 minutes while that for one is also 80 minutes.
Stable and safe, intelligent temperature control.
Charging will be automatically stopped when the battery is overheated after flight for safety.
When temperature rise up, fan will speed up automatically. But when controller in charge only, the fan will not operate since current is low.
Special designed for DJI Phantom 3.
Specifications:
Item name: 4 in 1 Battery Charger
Input: 110-240V
Output: 17.5V 12A
Branch output: 17.5V 4A
Charging time: 80 mins
Plug type: EU plug
Material: metal
Suitable for: DJI Phantom
Item dimension: 172 * 128 * 48mm
Item weight: 775g
only 1,150K
'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682

On 08.24 by ayuhobbies   No comments

Jual Aneka Mini Quad Race ESC
EMAX - BLHELI SERIES 12A ESC only 160K
ORIGINAL FAVOURITE FVT LITTLEBEE 20A OPTO PRO ESC only 177K
ZTW SPIDER PRO 30A HV OPTO 2-6S only 239K
'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682




On 08.21 by ayuhobbies   No comments

Jual Aneka Motor Brushless for Mini Quad Race
ZMR 1804 2400KV OUTRUNNER BRUSHLESS MOTOR
only 325K per pair
SUNNYSKY X2204S 2300KV BRUSHLESS MOTOR
only 570K per pair
XNOVA XTS 2204-2600KV SUPERSONIC FPV MOTOR RACING
only 1,605K per Set (4pcs)
'enjoy life is enjoy your hobbies'
Further info please visit : www.ayuhobbies.com
No Telp : 022-87777344
Hot Line / WA : 0811.220.2325
Pin BB : 5D96A682
