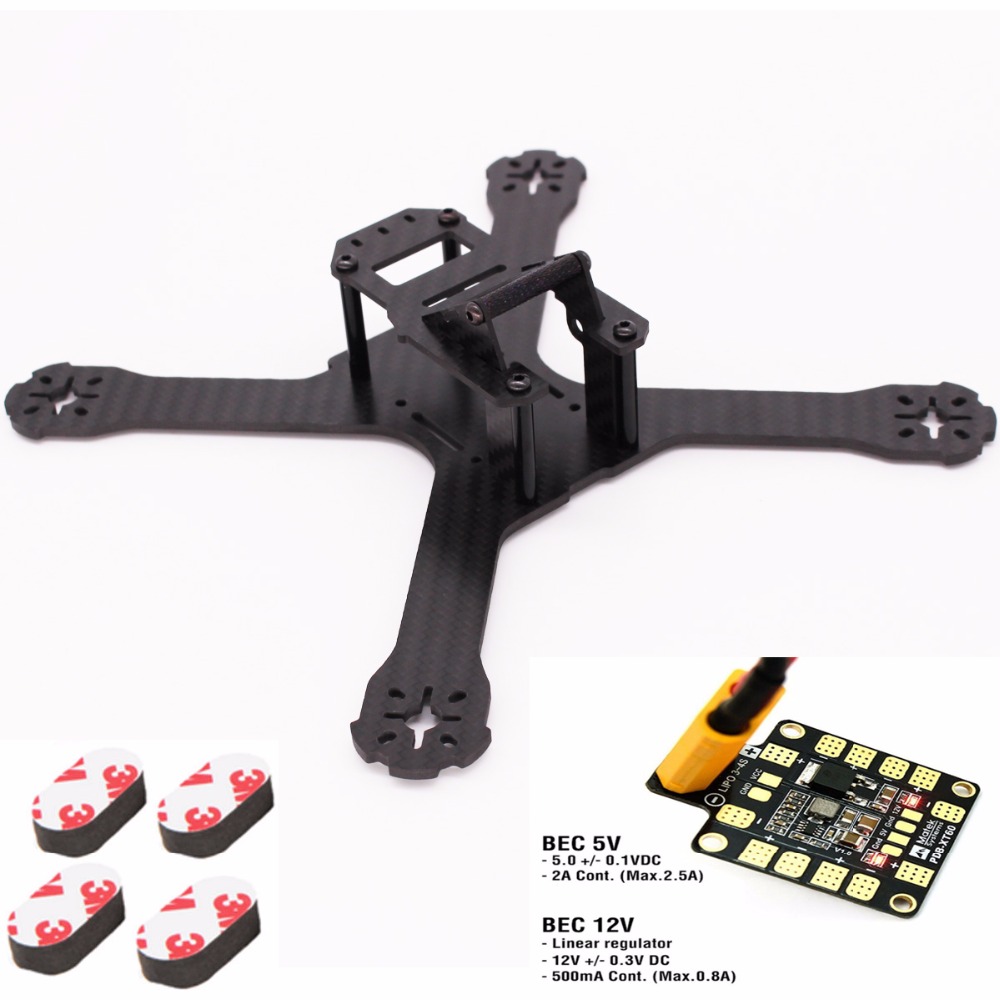

QAV-X 214 214MM FPV RACING FRAME KIT WITH 4MM ARM + MATEK PDB


Description:

Item Name: QAV-X Carbon Fiber Frame Kit
Material: Full 3K Carbon Fiber
Wheelbase: 214mm
Main Plate : 4mm
Battery Protector plate : 1.5mm
Frame Weight: about 84.5g
Battery board weight: 6g

Features:
Use 4MM 3K carbon fiberMain Plate light and simply.
The bottom fuselage uses 4MM pure carbon fiber board, fuselage and arms in one make the space bigger and make it stronger.
Only 100g, and stable.
With 5V 12V distribution board , compatible with 3S and 4S battery
With 5 inch flat blade, more efficient than the other propeller.
In high strength test, flying fluently in cornering, is suitable for the competition

Recommanded Spare Parts: Not included
Brushless motor:1806-2206(KV2000-2300)
Brushless ESC:12-30A
Flight Controller: Mini CC3D/Naze32
Propeller:5030,5040,5045
VTX:5.8G 200-600mW 32CH
Antenna: Clover antenna/ 14DB flat antenna/ mushroom antenna

Matek PDB-XT60 distribution board:

The PDB-XT60 has been engineered to provide the highest possible performance and reliability in a 36*50mm & 4 layers PCB. It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronised & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.
It offers a XT60 socket to connect the LiPo pack conveniently.

Description:

General:
-Input voltage range (3S-4S LiPo operation): 9 - 18V DC
-Regulated 5V and 12V outputs
-LED power indicators ( 5V & 12V outputs )
-6 ESC outputs & 1 pair VCC/GND pads

ESC outputs:
-Continuous current: 25A*4 or 15A*6
-Peak current (10 seconds/minute): 30A*4 or 20A*6

BEC 5V output:
-Designed for RC Receivers, Flight controllers, OSD, and Servos.
-DC/DC synchronous buck regulator.
-Voltage: 5.0 +/- 0.1VDC
-Continuous current: 2 Amps (Max.2.5A 10s/minute)
-Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
-Short-circuit tolerant (5 seconds/minute)

BEC 12V output:
-Designed for Video TX or FPV camera with linear regulator.
-The battery should be 4S LiPo (13~18V DC)
- Voltage: 12.0 +/- 0.3VDC
-Continuous current: 500mA (Max.0.8A 5s/minute)
-Short-circuit tolerant (2 seconds/minute)

BEC 12V @ 3S LiPo
-Output voltage= 3S LiPo voltage -1V

Physical:
-Dimensions: 36 x 50 x 4 mm (without XT60)
-Mounting: 30.5 x 30.5mm, Φ3mm
- Weight: 7.5g(w/o XT60), 11g(w/ XT60)

Features:
2oz copper, 4-layers &1.6mm PCB.
Built-in XT60 Socket
Total 6 pairs ESC solder tabs are fit for H or X type frame 5V & 12V Output LED indicators & Short circuit tolerant






Package list:

1 x QAV-X quadcopter frame (unassembled)
1pcs Matek board (as your wish)
1pcs battery belt as the gift (not include the battery in the package)
4pcs Sponge Dumper
2pair 5045V2 propeller




Note : this frame aren`t Lumenier frame, the parts and accessories can not be universal.
